2.13 Inch EPD 2.13' SSD1680Z8 Square Electronic Paper Displays
1. Over View
DEPG0213BNS800F13 is an 2.13 inch Active Matrix Electrophoretic
Display (AM EPD), with interface and a reference system design. The
EPD display is capable to display images at 1-bit white, black full
display capabilities. The 2.13 inch active area contains 250×122
pixels. The module is a TFT-array driving electrophoresis display,
with integrated circuits including gate driver, source driver, MCU
interface, timing controller, oscillator, LUT, DC-DC, SRAM, VCOM.
Module can be used in portable electronic devices, such as
Electronic Shelf Label (ESL) System.
2. Features
◆ 2.13 inch
◆ 250×122 pixels display
◆ High contrast
◆ High reflectance
◆ Ultra wide viewing angle Ultra low power consumption
◆ Pure reflective mode
◆ Bi-stable display
◆ On chip display RAM
◆ Waveform can stored in On-chip OTP or written by MCU
◆ Serial peripheral interface available
◆ On-chip oscillator
◆ On-chip booster and regulator control for generating VCOM, Gate
and Source driving voltage
◆ I2C signal master interface to read external temperature sensor
◆ Built-in temperature sensor
◆ Commercial temperature range
◆ Landscape portrait modes
◆ Hard-coat antiglare display surface
◆ Ultra Low current deep sleep mode

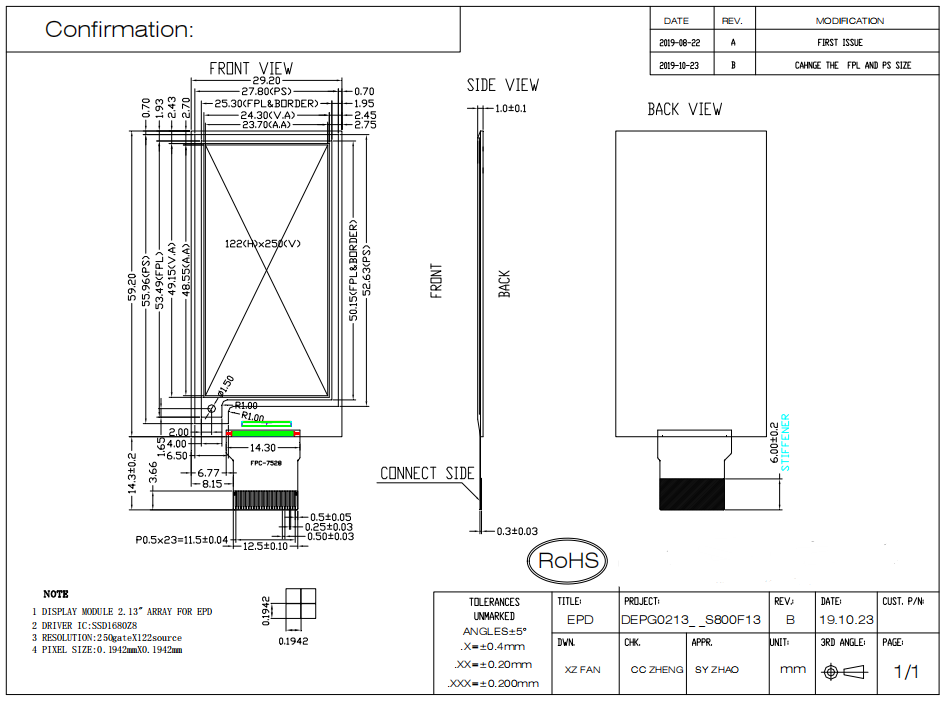

Mechanical specification
| Parameter | Specifications | Unit | Remark |
| Screen Size | 2.13 | Inch | |
| Display Resolution | 122(H)*250(V) | Pixel | DPI:130 |
| Active Area | 23.69*48.55 | mm | |
| Pixel Pitch | 0.1942*0.1942 | mm | |
| Pixel Configuration | Square | | |
| Outline Dimension | 29.2(H)*59.2 (V) *1.05(D) | mm | |
| Weight | 3.2±0.5 | g | |
Long-term partner
We have long - term cooperation with many well-known enterprises in
China, and also do business with more than 20 countries, so from
Shenzhen qihang electronic technology company you can get more
stable supplying promise;
Super After-Sale service:
Shenzhen qihang electronic technology company will support original
factory technology service before and after sale for all your
project, you can send all the fack panel back and here return you a
new panel;
Sample Policy
Some samples are free, Welcome to contact us for information
regarding our sample policy
Packing & Delivery
1). Payment Terms: T/T, Paypal, Money gram, Western union
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, SF, or
by air.
3). Delivery time: 5-10 days for sample, 3-5 weeks for mass
production goods.
4). Packaging Details: Packed in anti-static bags with foam box to
ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the
weight and volume of the products.
FAQ
Q: Can I get samples before I order?
A: Yes, we can have samples sent to you within 5 working days upon
receipt of your payment for these samples.
Q.: What is your business type?
A: We are a factory of EPD / Electronic Paper Displays, design,
produce and export our EPD / Electronic Paper Displays.
Q: What is the lead time?
A: Usually our production period is around 4 working weeks. If you
have a deadline in mind, we will always aim to meet it,
however it still depends on the availability of raw materials and
the period of year.
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is generally 1000pcs / lot, however we accept less
quantities for the trial orders.
Q: What are the payment terms?
A:Our payment terms are T/T (telecom transfer) 30% in advance and
T/T 70% before shipment.
Q: Do you also customize the products?
A: Yes, we also customize the products according to your
requirements.
Q: Can we visit your factory?
A: Welcome!
Q: Where is your main market?
A: We sell and ship our products all over the world. Our main
market is in Europe, North America and Asia.
Product datasheet
