240x64 Graphic Module Cob Alphanumeric Display Module 22pins

Ask Lasest Price
Brand Name :	Qihang
Model Number :	JXL-24064-2
Certification :	ROHS/CE
Price :	Negotiable
Payment Terms :	T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability :	300000 Per Month
Delivery Time :	10-15 Days

Add to Cart

Product Details
Company Profile

240x64 Graphic Module Cob Alphanumeric Display Module 22pins

240x64 Graphic module cob Alphanumeric panel 22pins display module

Product Detail

Applicaion	Alll kinds of meters
Display Content	digits+dots+patterns
Operating voltage	3.3V / 5.0V
Viewing angle	6 o'clock
LCD mode	STN LCD module
Display mode	Positive / Transflective
Conecting mode	Metal pin
Backlihgtlight	White
Voltage driving	Dynamic or static
DOTS	128*64
Operating voltage	-20°C~+70°C
Storage voltage	-30°C~+80°C
Package	COB
OEM/ODM	Accecpted

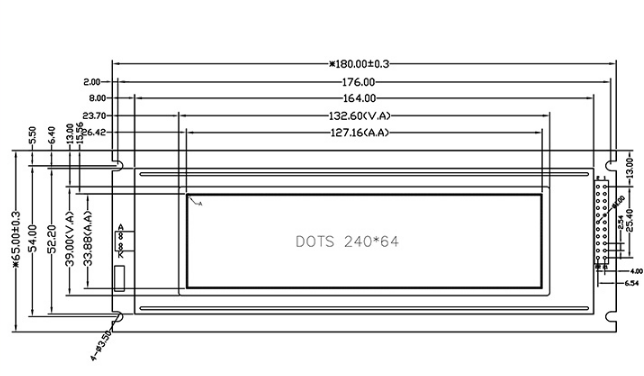

Dimension	180.0 X 65.0 X 13.0 mm
V.A.	132.0 X 39.0 mm
System design	Lcd module related system software and hardware design accepted
Warranty	12 moths free
Backlight	LED (White)
LCD Module type	Metering Module
Sample lead time	3-7 working days
Customize lead time	15-30 working days
Packaging	One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification	ISO,SGS

Introduction

JXL-24064-2 LCM is a graphic dot matrix liquid crystal display module with Chinese character library. It is mainly composed of controller T6963 (both row and column drive functions), column driver T6963 and 240×64 full dot matrix liquid crystal display.
Can display letters, numeric symbols, Chinese font and self-defined map block display, the font ROM contains 8192 (GB-2312)16×16 dot matrix of Chinese font and 160 16×8 dot matrix half wide character font,
In addition, the drawing display screen provides a 64×240 dot matrix drawing area (GDRAM) and 240-point ICON RAM, which can be mixed with the text screen display, and the Cgram contained in its controller provides 4 groups of software programmable 16×16 character creation functions.
Main technical parameters and performance:
1. Power supply operating range: 2.7V to 5.5V
2. Provide 8-bit MPU interface
3. 64 * 16-bit byte display RAM (DDRAM up to 16 bits * 4 lines)
4. 64× 240-bit drawing display RAM (GDRAM)
5. 2M-bit Chinese font ROM (CGROM) provides a total of 8192 Chinese fonts (16×16 dot matrix)
6. 16K-bit half-wide font ROM (HCGROM) provides a total of 128 symbol font (16×8 dot matrix)
7. 64× 16-bit font generation RAM (Cgram)
8. with drawing and text picture mixed display function
9. Provide multi-function instructions
- Screen clearance
- Cursor return
- Display on/off
- Cursor show/hide
- Display character flashing
- Cursor return
- Display homing position
- Vertical screen rotation
- Back-white display
- Sleep pattern
