4Bit OEL2M7003FPC-A4-E SPI 1.35" Passive Matrix OLED Display Module

Ask Lasest Price
Brand Name :	Truly
Model Number :	JXL-1.35"OEL2M7003FPC-A4-E
Certification :	ROHS/CE
Price :	Negotiable
Payment Terms :	T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability :	300000 Per Month
Delivery Time :	10-15 Days
MOQ :	1piece

Add to Cart

Product Details
Company Profile

4Bit OEL2M7003FPC-A4-E SPI 1.35" Passive Matrix OLED Display Module

Quick Details

Items	Specification	Unit
Diagonal Size	1.35	Inch
Resolution	128*64	Dots
Active Area	27.86*20.5	mm 2
Outline Dimension	33.1628.451.77	mm 2
Pixel Pitch	0.205(W) x 0.226(H)	mm 2
Pixel Size	0.226(W) x 0.246(H)	mm 2
Driver IC	CH1115	-
Display Color	White	-
Gray Scale	4	Bit
Interface	SPI
IC Package Type	COG with Flex for ZIF	-
Module Connecting Type	ZIF	-
Thickness	1.4 ±0.1	mm
Weight	TBD	g
Duty	1/64	-

Temperature Range

Item	Operating Temperature (°C)	Storage Temperature (°C)
Min.	-30	-40
Max.	80	85

Packaging & Delivery

Port : Shenzhen

Lead Time :

Quantity(Pieces)	1 - 5000	>5000
Est. Time(days)	20	To be negotiated

Description:

1.These OLED displays are small, only about 1.35" diagonal, but very readable due to the high contrast of an OLED display.

2.Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast.

3.This breakout can be used SPI interface - selectable by soldering two jumpers on the back.

4.The design is completely 5V-ready, with an onboard regulator and built in boost converter. It's easier than ever to connect directly to your 3V or 5V microcontroller without needing any kind of level shifter!

5.No embedded fonts inside the OLED controller, user can create the fonts through the font generation software.

Sample Policy

Process Flow

FAQ

Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.

Q: Do you offer custom solution?

A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.

Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

Q: What about the delivery time?
A: The LCD products need 3-6 weeks to be made after receive deposit.

Q: What's your payment method?
A: We usually accept the payment methods include T/T, D/P, Western Union and Paypal. 30% deposit in advance and balance before shipping upon the payment amount.

Q: What's your shipping method?
A: We provide comprehensive shipping methods.Display
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.

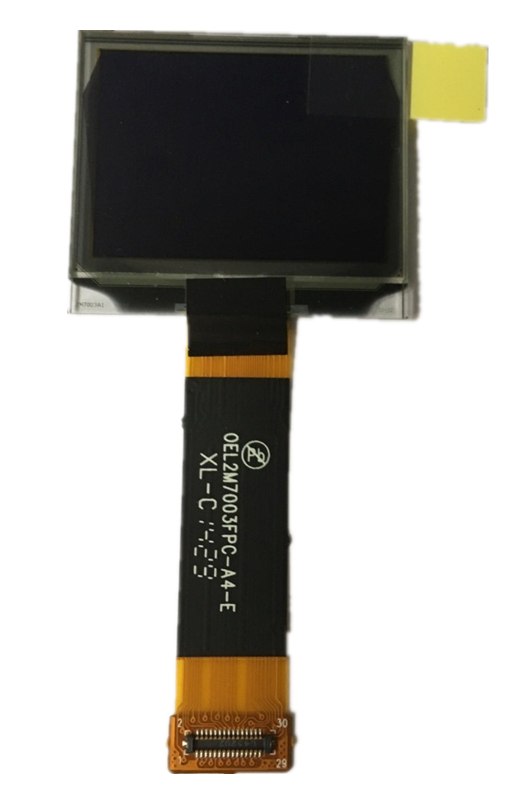

Product show
