OEM High Brightness Acrylic 18000lm 3W LED Backlight for LCD Display Module

Ask Lasest Price
Brand Name :	Qihang
Model Number :	QH11867
Certification :	ROHS/CE
Price :	Negotiable
Payment Terms :	T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability :	3000000 Per Month
Delivery Time :	10-15 Days

Add to Cart

Product Details
Company Profile

OEM High Brightness Acrylic 18000lm 3W LED Backlight for LCD Display Module

Quick Details

Type: LED Modules

Lighting solutions service: mini led backlight

Luminous Efficacy(lm/w): 30

Chip Material: Gaas

Emitting Color: COOL WHITE

Luminous Intensity: High bright

Luminous Flux(lm): 18000

Optical Attenuation(%): 5

Power: 3.0 W

Power Dissipation: 0.3

Viewing Angle(°): 120

Color Rendering Index(Ra): 85

Color Temperature: 15000

Operating Temperature(℃): -20 to +70

Storage Temperature(℃): -30 to +80

Place of Origin: Shenzhen, Guangdong, China

Brand Name: Qihang

Certification: CE, RoHS

Product name: LED Backlit module

Application: LCD Display module

LED Type: QH11867

Voltage: DC 3V

Color: Single Colour

Color Light: Customized

Size: Customized

Keyword: LED Back Light

Material: Acrylic

Warranty: 3 Years

Detail introductions:

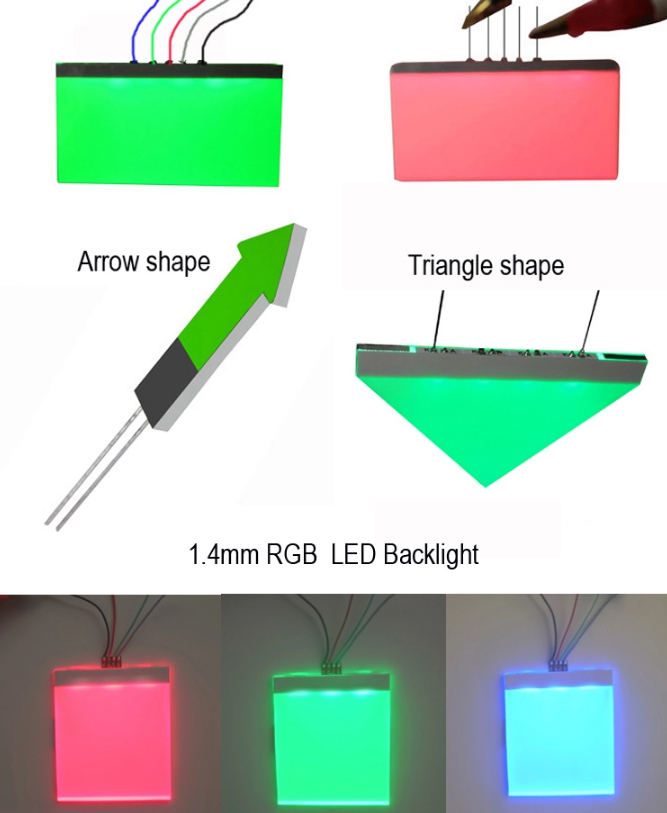

Our Led backlight is using the high quality,uniformity,stable voltage,current led,small brightness and wavelength scope as the light source.It can be round led backlight shape,many single colors availble or RGB led backlight available, use the acrylic as the main material for our led backlight.
Our led backlighting is using the diffusing film stick on the upon surface to make good even brightness uniformity. It is quality led backlight.
Suitable designed PCB strip for good led current control which will increase the led lifespan.
Connection way can be electronic wires with connector,FPC or metal pins.
Free samples for no molding shape, we can provide comom DC3.0V existed PCB samples for customer's evaluation.
Quality guarantee: 3 years.
OEM services: The specification, brightness, light color, working voltage or current can be customized as per customer's requires. Good quality led backlight manufacturer.
The major material is acrylic sheet or say PMMA sheet with molding designed dots or screen printing. It can be slim led backlight.
Using the led pcb strip assembly on the edge or bottom of the acrylic board.
Using the siver and reflecting film around the edge and back to shading and reflecting the brightness to upon surface.It can be thin led backlight.

Supply Ability

300000 Piece / Pieces per Month

Packaging & Delivery

Packaging Details: Standard export carton packing.

Port: Shenzhen, Guangdong

Lead Time :

Quantity(Pieces)	1 - 100	101 - 1000	>1000
Est. Time(days)	7	15	To be negotiated

Notes

Custom must supply the following Specification,that we can quote immediately and exact.
1) Custom size of the backlight board;
2) Active Area size of the LED Backlight;
3) Luminance of the backlights;
4) LED light type like DIP LED, SMD or FPC;
5) Color of the LED light;
6) A picture of the appearance;
7) Thickness of the backlighting;
8) Input Voltage and Connection Type

Quality Control

1) Before the order is confirmed, we would check all the materials, they should be the same as the mass production.
2) We will keep tracing of every process in the manufacturing from the begining to the end.
3) Every product quality checked & cleaned before packing.
4) Before bulk delivery, clients could send one QC or point the third party to check the quality.
5) After the delivery, we will keep tracing of the product quality and we will try our best to help the clients when the problems happen.

Strengt

1> ISO9001 certificated Factory supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive price and Short lead-time
4> International Approvals, Military Specifications
5> In stock, samples lead-time: 1 -- 3 days.
6> Small MOQ

FAQ

1. I want to ask the LED Backlight outline size is 250x30x1.5mm...…?
Answer: No problem. Firstly, pls send us your specification /drawing paper or samples,; we will introduce the suitable one if it is standard products.
Or we can modify based on your own drawing and requirement.

2. Do you support for customized products solutions or engineering drawing ?

Yes,we can always provide good solutions for custom different size and shape led backlights,led light guide panels,advertising led light box.

3. How is your product's quality guarantee ?

We guarantee 3 to 5 years for the quality per different products. Any quality issue during 3 to 5 years,we accept goods redo or return.

4. Do your products past any certificates ?
All our products past ROHS,CE,FCC certificates, some products past REACH,UL,DLC. We can also do the test as per customer's requires.
5. How is the delivery time after the order confirmed ?

Normally 20 to 35 working days as per different products and quantity.

6. Can you provide waterproof outdoor led light panels ?
Yeah, we can do well silicon glue shading led guide panels with IP65. RGB led backlight,RGB led light panel and RGB led light box available.
