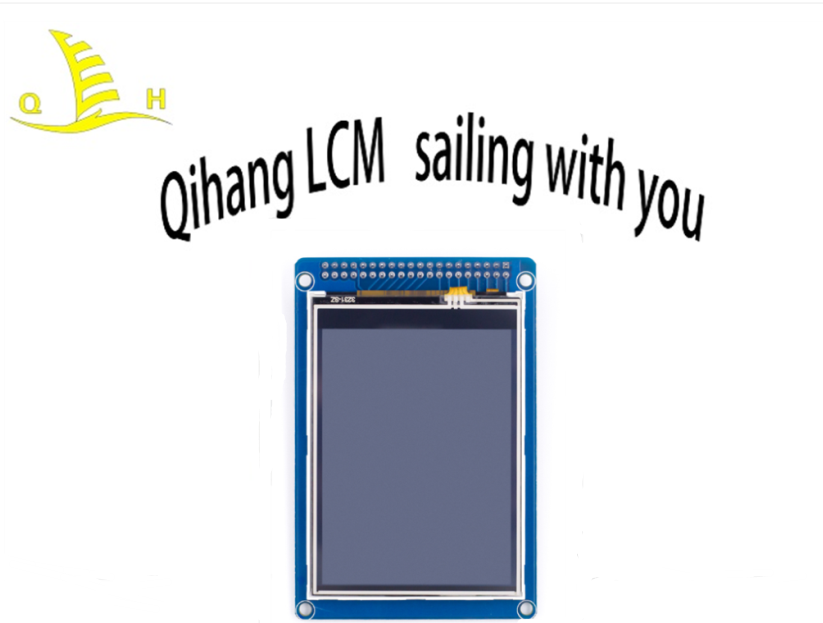

    OEM 3.2 Inch 240320 Dots Matrix ILI9341 CTP TFT LCD Display Module

    Ask Lasest Price
    Brand Name : Qihang
    Model Number : JXL-3.2TFT-1
    Certification : ROHS/CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
    Supply Ability : 300000 Per Month
    Delivery Time : 10-15 Days
    MOQ : 1piece
    • Product Details
    • Company Profile

    OEM 3.2 Inch 240320 Dots Matrix ILI9341 CTP TFT LCD Display Module

    OEM 3.2 Inch 240320 Dots Matrix ILI9341 CTP TFT LCD Display Module

    Quick Details


    NameOEM 3.2 Inch 240320 Dots Matrix ILI9341 CTP TFT LCD Display Module

    Display Size

    3.2" TFT

    Display Mode

    Normally White, Transmissive / Positive LCD

    Viewing Direction
    6 O’CLOCK

    Volte

    3.3V I/O voltage level tolerance

    Backlight

    6 Chip-White LED Light

    Operating Temp:

    -20 ℃ - 70 ℃

    Storage Temp:

    -30 ℃ - 80 ℃

    Input Signals

    RGB

    Outside Dimensions

    94 * 64 * 14 mm

    IC

    ILI9341 Controller


    Note


    1. LCD Module is with ILI9341 Controller
    2. ADS7843 compatible touch panel controller
    3. Onboard 3.3V regulator require a single 5V supply
    4. 3.3V I/O voltage level tolerance
    5. Module Size (L * W * H): 94 * 64 * 14mm (including connector)
    6. Support 16 bit RGB565 format , can connect any 16 bit data bus.


    3.2" inch TFT LCD module with ILI9341 touch screen controller and a SD card cage.

    It is suitable for embedded systems which require display high quality colorful image or video with interactive control and storage purpose.

    The Module interfaces to microcontrollers via a 2*20 Pin 2.54mm dual row pin header interface , can easily be connected to any microcontroller.

    Sample Policy


    Contact us for information regarding our sample policy

    Shipping Warranty

    We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
    1. We will ship the items after the payment is reached;
    2. We can ship to you by UPS/DHL/TNT/EMS/Fedex. Pls contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver,pls choose other shipping ways;
    3. Goods will be sent out soon,with 1-3 days;
    4. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service;
    5. Any import fees or charges are the buyer's responsibility.


    Product replacement and warranty


    If you have any prodcut quality problem, you can send it back to us with the original condition,we will repair or exchange new one for you.
    If you have any using problem of the products which buy from Qihang, please feedback to us first, and we will discuss the issue with you. Via our technical support, we can dig out your using problem via our technical support in most of cases.
    Lost Products: If products get lost in delivery, or you still do not get your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we want you communicate with us. Usually, we will provide tracking number and tracking link timely. If products get lost on the way and we get confirm from couriers, we will arrange redelivery for your products. If you want ship it through express, then you need to pay express shipping fee.

    FAQ


    What shall we do if we find any item missing or defective after receiving the goods?
    Please contact us ASAP, we will check it and offer the best solution according to the situation.

    Is it possible to customize the LCD modules?
    Yes you could let us know the concrete requirements then we will design and confirm with you.

    Is it possible we appoint the delivery agent?
    Yes. Except the couriers we mentioned, we could use others as your requirement.

    Products are in stock? How long can you deliver?
    Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.


    How many years for warranty can you provide?
    Normally 1 year. Can be longer but price should be modified.

    How long can I get reply?
    Within 24 hours. Chinese working time 9:00-18:00 Monday-Friday online service to help you solve problems.Also reply by phone is possible at night time and weekends.


    Note


    We accept any form cooperations, looking forward to being your reliable long-term parter. If you have any question,you're welcome to contact us. Best wishes for you and your business!
