Customize Dynamic BIAS STN FSTN LCM FPC COG LCD Display Module
Product detail
We provide a verity of LCD display screen module according to
customers' various requests, TFT LCD Screen Module, Graphic LCD
Display Module, Character LCD Display Module, Segment LCD Module,
OLED Display Module, LCD Display Led Backlight, LCD Display Led
Backlight, Touch Panel, Smart Screen Module.
1. Character Module series for 8X2, 16x1, 16x2, 16x4, 20x1, 20x2
characters
2. Graphic Module series for 96x16 dots, 98x64 dots, 122x32
dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots,
160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots,
320x240 dots series.
| Name | Customize Dynamic BIAS STN FSTN LCM FPC COG LCD Display Module |
| Applicaion | All kinds of meter |
| Display Content | 98*64 Digits+dots+patterns |
| Operating voltage | 3.3V |
| Driving method | 1/64 DUTY, 1/9 BIAS |
| Viewing angle | 6:00 O'clock |
| LCD mode | FSTN |
| Display mode | Transmissive/ positve |
| Conecting mode | FPC |
| FSTN film | Grey |
| Voltage driving | Dynamic or static |
| DOTS | 98*64 |
| Operating voltage | 0℃-50℃ |
| Storage voltage | -10℃-60℃ |
| Package | COG |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free, payed warranty lifttime |
| Backlight | LED (White) |
| LCD Control IC | ST7567 |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Packaging | One module in a bag, bags in small carton foam protecting, small
carton in big carton |
| Cetification | ISO,SGS |
ODM is accepted
Various LCD Display Mode Available
Various Backlight Color Available
Various Temperature Range Available
Packaging & Delivery
Lead Time
| Quantity(Pieces) | 1 - 2 | 3 - 100 | >100 |
| Est. Time(days) | 7 | 15 | To be negotiated |
Our Product
We provide a verity of LCD display screen module according to
customers' various requests, TFT LCD Screen Module, Graphic LCD
Display Module, Character LCD Display Module, Segment LCD Module,
OLED Display Module, LCD Display Led Backlight, LCD Display Led
Backlight, Touch Panel, Smart Screen Module.
1. Character Module series for 8X2, 16x1, 16x2, 16x4, 20x1, 20x2
characters
2. Graphic Module series for 96x16 dots, 98x64 dots, 122x32
dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots,
160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots,
320x240 dots series.
Product Application
Our products are widely used in different equipments which need
display terminal, such as instrumentation, industrial controller,
machine, electric power automation, monitoring, teaching
equipment,beauty equipment, small appliances, smart home,
intelligent gas heat meter, communications equipment, medical
equipment,financial machines scheduling,POS terminals,GPS
navigation,office automation equipment, text information etc.
FAQ
Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products
are shipped with 100% inspection.
Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials
and a small amount of finished goods. Small batch delivery needs
2-3 week, mass delivery takes 3-4 weeks.
Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the
warranty period, our company is free to repair, the warranty
period, or the damage caused by improper use is not within the
scope of free maintenance. As long as it is our products, we can
provide technical support services.
Q:The LCD screen can be exported directly? what certification could
provide ?
A:Liquid crystal products comply with the RoHS standard, can be
directly exported.Products by RoHS, CE, SGS certification.
Q: What kind of packaging? The transport process will not be
damaged?
A:Our products are divided into three categories, small size
screens use foam packaging, small and medium size use knife card
isolation packaging, large size screens are used in aircraft box
packaging, all packages are protected by outer box and strapping to
ensure the safety of material transportation.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product
related information and test reports.
Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the
minimum purchase quantity constraint.Mold fee for all kinds of
products are not the same, the general principle is: LCD mold fee
category: TN was low,STN was high.

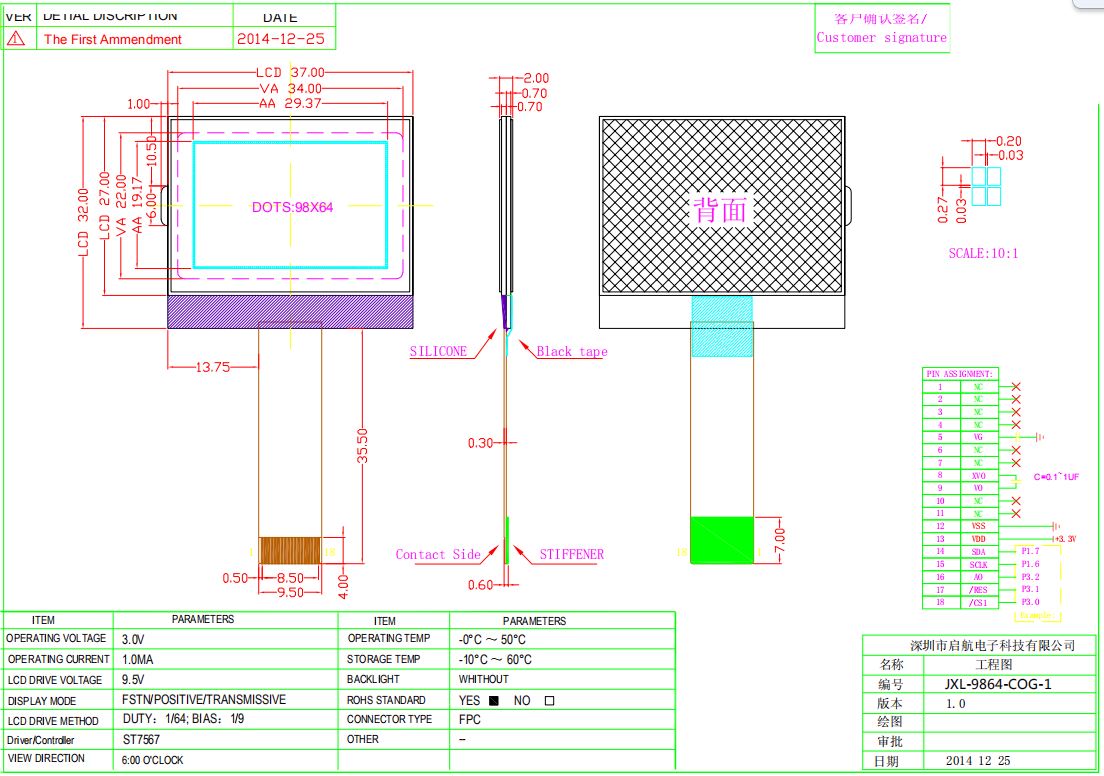

Product Datasheet
