    Positive Zebra Connection 9616 Dots Matrix I2C Interface LCD Display Module

    Ask Lasest Price
    Brand Name : Qihang
    Model Number : JXL-9616-SX
    Certification : ROHS/CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
    Supply Ability : 300000 Per Month
    Delivery Time : 10-15 Days
    • Product Details
    • Company Profile

    Positive Zebra Connection 9616 Dots Matrix I2C Interface LCD Display Module

    9616 Dots Matrix I2C Interface LCD Display Module

    Product Details

    JXL-96x16 COB is a customed dot matrix LCD module, It can display 96*16 dots size LCD panel. It can be used in graphic display modes, and includes various attribute functions. The device has an 8-bit parallel data bus and control lines for reading or writing through an MPU interface.

    Features
    1. Display format 96*16 dots matrix
    2. FSTN positive mode
    3. Easy interface with 8-bit MPU
    4. Low power consumption
    5. Viewing angle: 6 O’clock
    6. Multiplex level: 1/64 duty, 1/5 bias
    7. LCD driving voltage (top):9.0V
    8. LCD connection: Zebra
    Name9616 Dots Matrix I2C Interface LCD Display Module
    ApplicaionAll kinds of meter
    Display Content
    96x16 DOTS
    Operating voltage3.0 V
    Driving methodAccording to your request
    Viewing angle6 O'clock
    Display modePositive
    View Area51.90 (H)mmx 40.20 (V) mm
    Outside Dimensions69.17 (H)mmx 53.49 (V)mmx 13.1 (D)mm
    Voltage drivingDynamic or static
    ConnectorZebra
    Drive Method1/65 Duty, 1/5 Bias
    Polarizer TypeTransflective
    PackageCOB
    OEM/ODMAccecpted
    System designLcd module related system software and hardware design accepted
    Warranty12 months free, payed warranty lifttime
    BacklightWhite LED
    LCD Module typeGraphic LCD Module
    Sample lead time3-7 working days
    Customize lead time15-30 working days
    CetificationISO,SGS


    Packaging and delivery


    Packing Details : One module in a bag, bags in small carton foam protecting, small carton in big carton.

    Delivery Details : 3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register

    FAQ


    1. Our advantage

    - A gobal independent manufacture of LCD display module.

    - Welcome OEM, CEM

    - A variety of channels to satisfy various demands

    Most of them are in stock with aggressive price


    2. Quality:

    - Original :100% new and original factory packing. Rohs. No bulk, no refurbish, no obsolete.

    - Others: We can supply bulk, refurbish, obsolete,refund & replacement if you want .

    - Warranty: more than 365 days.


    3. For the faulty:

    - Firstly, products are produced in strict quality control system by manaufacturer .

    - Secondly, during the guarantee period, we will send new one with new order for small quantity.

    - For defective batch products, we will send them to factory and resend them to you or we can discuss the real situation.


    4. Q: How can I get the samples? Standard sample and Custom.
    A: Custom sample : Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect

    5.Q: How long can I expect to get the sample?
    A: Standard sample: 3 work days after confirming the order.
    Custom sample: according to the draw base on 5-20 days

    6.Q: Can you design the LCD in accordance with our demand?
    A: Yes,.We will give you the best tooling charge.

    7. Q:. What is the warranty?
    A: One year

    8.Q:How to place orders ?
    A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.

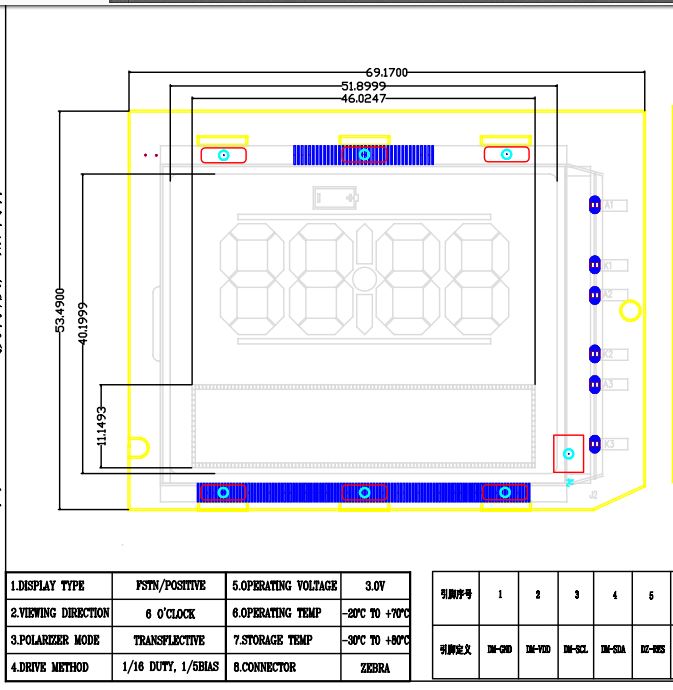

    Product Drawing
