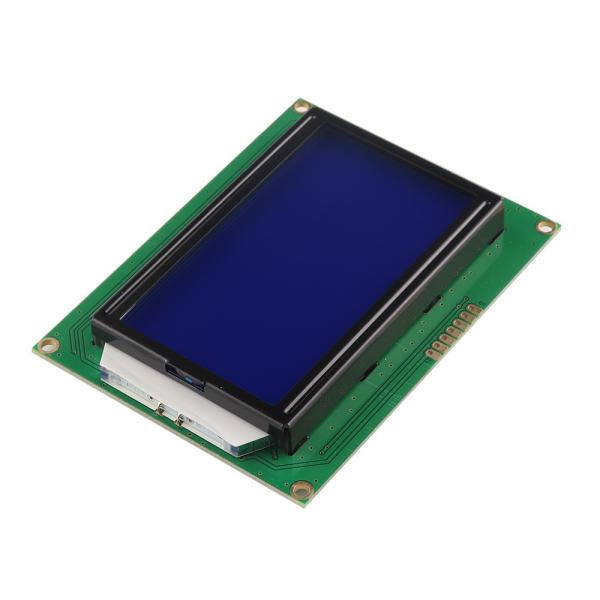

    Monochrome STN HTN FSTN 12864 Graphic COB LCD Display Module

    Ask Lasest Price
    Brand Name : Qihang
    Model Number : JXL-12864F04-0A
    Certification : ROHS/CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
    Supply Ability : 100,000 pcs Per Month
    Delivery Time : 10-15 Days
    MOQ : 1piece
    • Product Details
    • Company Profile

    Monochrome STN HTN FSTN 12864 Graphic COB LCD Display Module

    Monochrome STN HTN FSTN 12864 Graphic COB LCD Display Module

    Features

    1. Display format128*64 dot matrix
    2. Viewing angle: 6 O’clock
    3. Operation Voltage Range: 5.0
    4. Support 8-bit, 4-bit and serial bus MPU interface
    5. 64 x 16-bit display RAM (DDRAM)
    6. LCD display range 16 words x 2 lines
    7. 64 x 256-bit Graphic Display RAM (GDRAM)
    8. 2M-bits Character Generation ROM (CGROM): Support 8192 Chinese words (16x16 dot matrix)
    9. LCD driver IC / LCD controler: ST7920

    Product Details


    NameMonochrome STN HTN FSTN 12864 Graphic COB LCD Display Module
    ApplicaionAll kinds of meter
    Display Contentdigits+dots+patterns
    Operating voltage5V
    Driving methodaccording to your request
    Viewing angle6:00 O'clock
    LCD modeSTN (Blue)
    Display modeTansmissive
    Conecting modeMetal pin or rubber or other
    STN filmaccording to your request
    Voltage drivingDynamic or static
    DOTS128*64 dots
    Operating voltage-20℃-70℃
    Storage voltage-30℃-80℃
    PackageCOB
    ICST7920 or compatible IC
    System designLcd module related system software and hardware design accepted
    Warranty12 moths free, payed warranty lifttime
    BacklightLED (White)
    LCD Module typeMetering Module
    Sample lead time3-7 working days
    Customize lead time15-30 working days
    PackagingOne module in a bag, bags in small carton foam protecting, small carton in big carton
    CetificationISO,SGS

    Certification

    Qihang has a complete quality management system and passed the ISO9001:2015 quality system certification.The products conform to SGS,BV, RoHS, Reach and other certifications.

    Product Application

    Telecommunication DevicesTelephone,interphone,watch,tablet PC,radio,etc
    Consumer ProductsCamera,DVD player,toy, Cell Phone,game player,etc
    Technical EquipmentElevator controller,Industrial machine,etc
    Office AutomationPrinter,scanner,attendance machine,fax machine,etc
    Home AppliancesAir-condition display,refrigerator,electric cooker,video doorbell,etc
    AutomobileGPS,video player,speedometer,audio broadcast,etc
    IT ProductsCamera,handheld digital video,projector,media play,tablet PC,etc
    Medical EquipmentUltrasound machine,therapeutic equipment Blood pressure meter,etc

    Quality Control

    Qihang always adheres to the "quality first" concept, strictly controls the various processes of production operations, and conducts 100% inspection of shipped products.

    Technical Service

    If you have technical problem with the product you received from us, please contact us online or by email
    Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

    FAQ

    Q:The product specification is in Chinese or English?
    A:There are two version of product specifications: Chinese and English.


    Q: How long is the warranty and service of the product?
    A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.


    Q:How to control the quality of products?
    A: The company has a professional quality team, and all products are shipped with 100% inspection.

    Q:Can we customize products? How many charges?
    A:The LCD screen can be customized, customized products have the minimum purchase quantity constraint.Mold fee for all kinds of products are not the same, the general principle is: LCD mold fee category: TN was low,STN was high.

    Q: What is the minimum order quantity?
    A: The minimum order quantity depends on the product size.

    Q: Are you open to OEM processing?
    A: Yes, we can OEM.


    Q:Products are in stock? How long can you deliver?
    A:Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.


    Q:The LCD screen can be exported directly? what certification could provide ?
    A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

    Q: What kind of packaging? The transport process will not be damaged?
    A:Our products are divided into three categories, small size screens use foam packaging, small and medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.

    Q: Can you provide product drawings and test reports?
    A: According to customer needs, our company can provide product related information and test reports.

    Product Show

    Monochrome STN HTN FSTN 12864 Graphic COB LCD Display ModuleMonochrome STN HTN FSTN 12864 Graphic COB LCD Display Module
