| Name | OEM 3.0V STN HTN FSTN 9616 Monochrome LCD Display Module |
| Place of Origin | Guangdong, China |
| Display Content | 96*16 DOTS |
| Operating Voltage | 3.0V |
| Driving Method | According to your request |
| Viewing Angle | 6 o'clock |
| Display | Positive |
| Polarizer | Transflective |
| View Area | 51.90 (H) x 40.20 (V) mm |

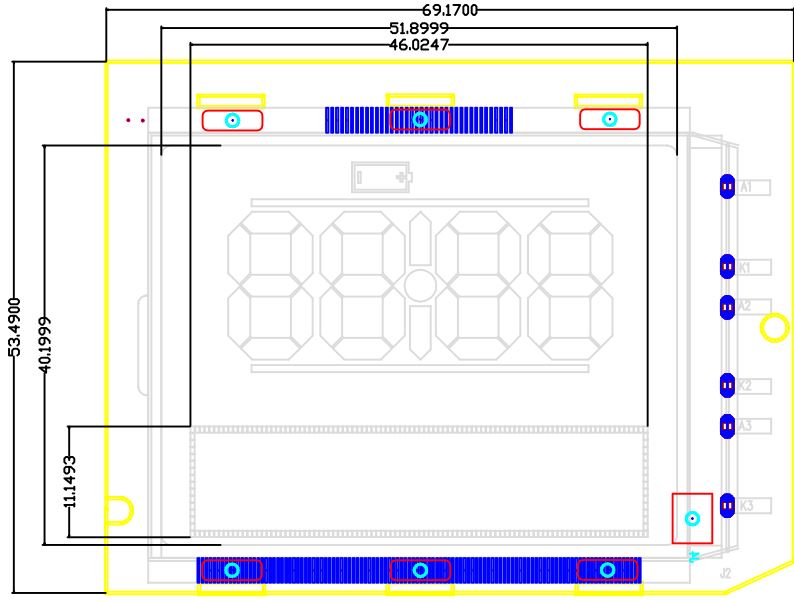

| Outside Dimensions | 69.17 (H)x 53.49 (V)x 13.1 (D)mm |
| Voltage Driving | Dynamic or static |
| Connector | 22 Pin |
| Operating Temperature | -20℃-70℃ |
| Storage Temperature | -30℃-80℃ |
| Package | COB |
| OEM/ODM | Accecpted |
| System Design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free, payed warranty lifttime |
| Backlight | White LED |
| LCD Module Type | Meter Module |
| Sample Lead Time | 3-7 working days |
| Customize Lead Time | 15-30 working days |
| Packaging | One module in a bag, bags in small carton foam protecting, small
carton in big carton |
| Cetification | ISO,SGS |
Product Application
We provide a verity of LCD display screen module according to
customers' various requests, TFT LCD Screen Module, Graphic LCD
Display Module, Character LCD Display Module, Segment LCD Module,
OLED Display Module, LCD Display Led Backlight, LCD Display Led
Backlight, Touch Panel, Smart Screen Module.
1. We provide a verity of lcd panel and lcd module, Including TN
LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.
2. Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2
characters
3. Graphic Module series for 96x16 dots,122x32 dots,128x32 dots,
128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots,
192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.
Technical Service
If you have technical problem with the product you received from
us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote
help by our engineer, please download the teamviewer software,
install it on your computer, then give us ID and password for
remote help.
FAQ
Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly semi finished products and raw materials
and a small amount of finished goods. Small batch delivery needs
2-3 week, mass delivery takes 3-4 weeks.
Q: How long is the warranty and service of the product?
A: The damage caused by the product during normal use, during the
warranty period, our company is free to repair, the warranty
period, or the damage caused by improper use is not within the
scope of free maintenance. As long as it is our products, we can
provide technical support services.
Q:The LCD screen can be exported directly? what certification could
provide ?
A:Liquid crystal products comply with the RoHS standard, can be
directly exported.Products by RoHS, CE, SGS certification.
Q: What kind of packaging? The transport process will not be
damaged?
A:Our products are divided into three categories, small size
screens use foam packaging, small and medium size use knife card
isolation packaging, large size screens are used in aircraft box
packaging, all packages are protected by outer box and strapping to
ensure the safety of material transportation.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product
related information and test reports.
Q:The product specification is in Chinese or English?
A:There are two version of product specifications: Chinese and
English.
Q:Can we customize products? How many charges?
A:The LCD screen can be customized, customized products have the
minimum purchase quantity constraint.Mold fee for all kinds of
products are not the same, the general principle is: LCD mold fee
category: TN was low,STN was high.
Q: What is the minimum order quantity?
A: The minimum order quantity depends on the product size.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products
are shipped with 100% inspection.
