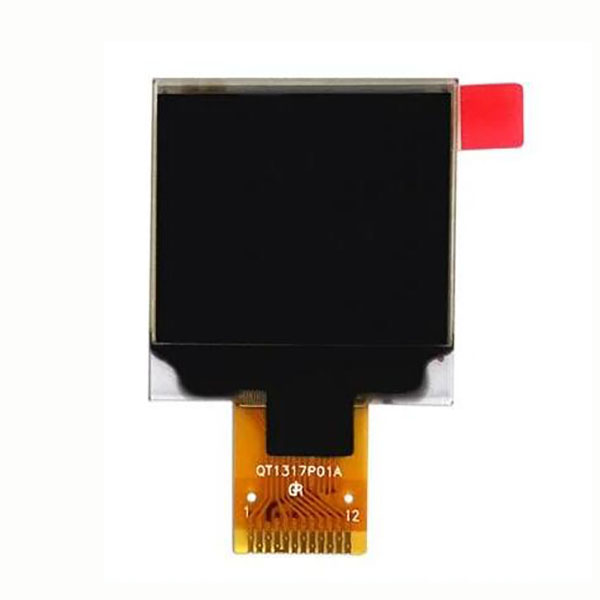

Factory Customize Small Order OLED Screen Display Module Solution
‐ Small molecular organic light emitting diode.
‐ Color : White
‐ Panel matrix : 96x16
‐ Driver IC : SSD1306BZ
‐ Excellent quick response time.
‐ Extremely thin thickness for best mechanism design : 1.227mm
‐ High contrast : 2000:1
‐ Wide viewing angle : 160°
‐ I²C Interface.
‐ Wide range of operating temperature : -40 to 70 °C
- Anti-glare polarizer.
| NO | ITEM | SPECIFICATION | UNIT |
| 1 | Dot Matrix | 96(W) X 16(H) | dot |
| 2 | Dot Size | 0.16(W) X 0.18(H) | mm² |
| 3 | Dot Pitch | 0.18W) X 0.20(H) | mm² |
| 4 | Aperture Rate | 80 | % |
| 5 | Active Area | 17.26(W) X 3.18(H) | mm² |
| 6 | Panel Size | 26.3(W) X 8(H) | mm² |
| 7 | Panel Thickness | 1.02±0.1 | mm |
| 8 | Module Size | 36.8(W) X 9(H) X 1.227(D) | mm³ |
| 9 | Diagonal A/A size | 0.69 | inch |
| 10 | Module Weight | 0.55±10% | gram |
Q1:How long is the warranty?
A:The warranty period is one year.During the warranty period, in
case of non-human injury, we will provide free repair or
replacement, including delivery costs.Beyond warranty: we provide
repair parts at a lower cost and provide services free of charge.
Q2:Do you accept customization?
A:Yes, we are glad to provide customized services.Our factory can
design and produce the appearance, logo, material, color,
size,installation method and so on according to customers'
requirements.
Q3:What are your payment terms?
A:Sample 100% TT,batch order 30% deposit, 70% balance before
delivery
Q4:How long is the delivery time?
A:For the finished products in stock, the delivery time is within
3-7 days;No inventory for 20-25 days;For customized samples and
bulk orders, the lead time is 7-30 days.
Q5:How can I get a sample?
A:Since most of our products are high value products, there are no
free samples.If you need to order a sample for inspection, we would
like you to pay the sample fee and freight, and the sample will be
sent to you upon receipt of payment.
