128 64 Dots Resolution SPI I2C Interface 2.42'' OLED Display Module

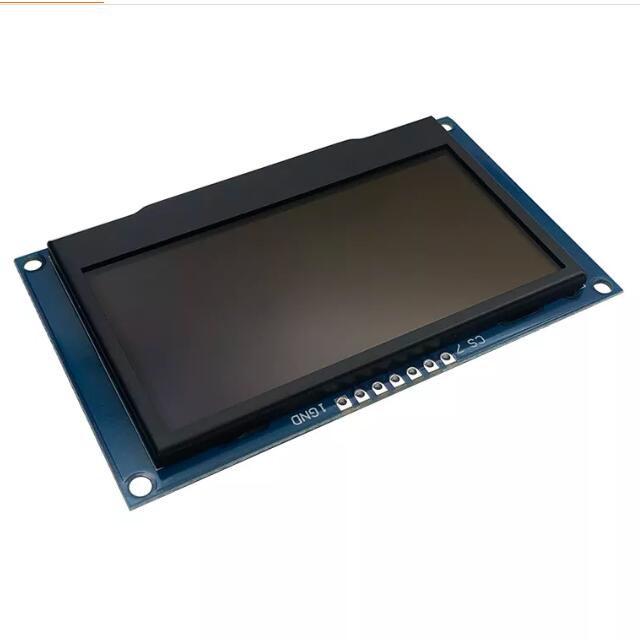

12864WBYG-01 is a dot matrix 128x64 COB graphic type OLED module.
The size of the active area is 2.42” diagonal with module dimension
71.0x43.5 mm. This 2.42 inches OLED module has built-in IC SPD0301,
and boasts high contrast ratio 20,000 : 1. There are many interface
options to choose from, including SPI and IIC (I2C) interface.
Logic supply voltage ranges from 1.65V-3.3V, the typical value is
2.8V. The available emitting colors are white, yellow, blue, green
and red.
12864WBYG-01 OLED module is originally without touch, but touch
panel is customizable. It's widely used in medical analyzer, meter
and instrument, sensor device, POS terminal, cash reader, handheld
device and mobile food ordering machine etc.
OLED Display Module :
| Name | 128 64 Dots Resolution SPI I2C Interface 2.42'' OLED Display Module |
LCD Type | TN, HTN, STN, FSTN, VA, COB, COG,COF |
dispaly mode | Positive ,Negative |
Display content | Any digitals, icons, graphic can be customized |
Polarizer type | Transmissive, Transflective, Reflective |
Operating voltage | 2.8v,3.0v,3.3v,4.5v,5.0v ,custmization available |
Connector Type | Metal Pins, Zebra, Heat-seal |
Glass thickness | 1.1x2 mm, 0.7x2 mm, 0.55x2 mm,0.4x2 mm |
Color | monochrome ,screen Color, True Color |
Backlight color | R,W,Y,YG,O,B,G,RB,RG,BG,RBG |
operatingTemperature | -20℃-70℃ |
Viewing angle: | 6H,9H,12H,3H |
Drive IC | AS require |
F A Q:
Q1:How long is the warranty?
A:The warranty period is one year.During the warranty period, in
case of non-human injury, we will provide free repair or
replacement, including delivery costs.Beyond warranty: we provide
repair parts at a lower cost and provide services free of charge.
Q2:Do you accept customization?
A:Yes, we are glad to provide customized services.Our factory can
design and produce the appearance, logo, material, color,
size,installation method and so on according to customers'
requirements.
Q3:What are your payment terms?
A:Sample 100% TT,batch order 30% deposit, 70% balance before
delivery
Q4:How long is the delivery time?
A:For the finished products in stock, the delivery time is within
3-7 days;No inventory for 20-25 days;For customized samples and
bulk orders, the lead time is 7-30 days.
Q5:How can I get a sample?
A:Since most of our products are high value products, there are no
free samples.If you need to order a sample for inspection, we would
like you to pay the sample fee and freight, and the sample will be
sent to you upon receipt of payment.
