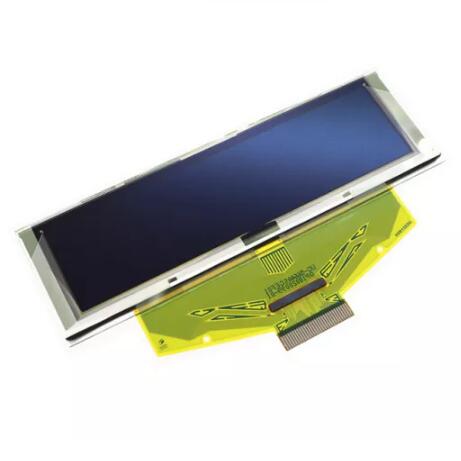

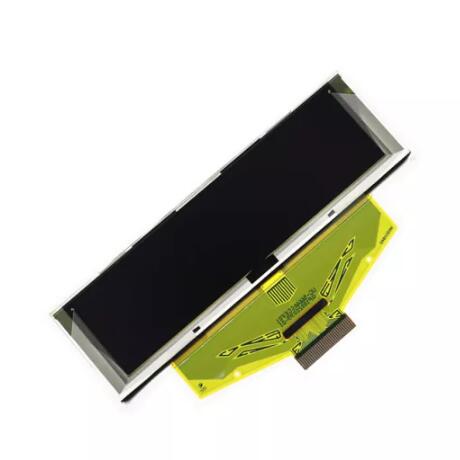

Factory Customize HTN FSTN SSD1322 Driver IC OLED Display Module
OLED Display Module :
| Name | Factory Customize HTN FSTN SSD1322 Driver IC OLED Display Module |
| Diagonal Screen Size | 3.12inch |
| Color | Mono(White) |
| Resolutions | 256 × 64 |
| Outline dimension | 88.00 × 27.80 × 2.00mm |
| Active area | 76.78 × 19.18mm |
| Pixel pitch | 0.30 × 0.30 mm |
| Pixel size | 0.28 × 0.28 mm |
| Driver IC | SSD1322 |
| Voltage | 3-5V |
| Interface | 8 bit Parallel, 4-wire SPI, I2C |
| Operating temperature | -30~85℃ |
| Storge Temperature | -40~90℃ |
| Assemble | Soldering |
| Pins | 30P |
F A Q:
Q1:How long is the warranty?
A:The warranty period is one year.During the warranty period, in
case of non-human injury, we will provide free repair or
replacement, including delivery costs.Beyond warranty: we provide
repair parts at a lower cost and provide services free of charge.
Q2:Do you accept customization?
A:Yes, we are glad to provide customized services.Our factory can
design and produce the appearance, logo, material, color,
size,installation method and so on according to customers'
requirements.
Q3:What are your payment terms?
A:Sample 100% TT,batch order 30% deposit, 70% balance before
delivery
Q4:How long is the delivery time?
A:For the finished products in stock, the delivery time is within
3-7 days;No inventory for 20-25 days;For customized samples and
bulk orders, the lead time is 7-30 days.
Q5:How can I get a sample?
A:Since most of our products are high value products, there are no
free samples.If you need to order a sample for inspection, we would
like you to pay the sample fee and freight, and the sample will be
sent to you upon receipt of payment.
