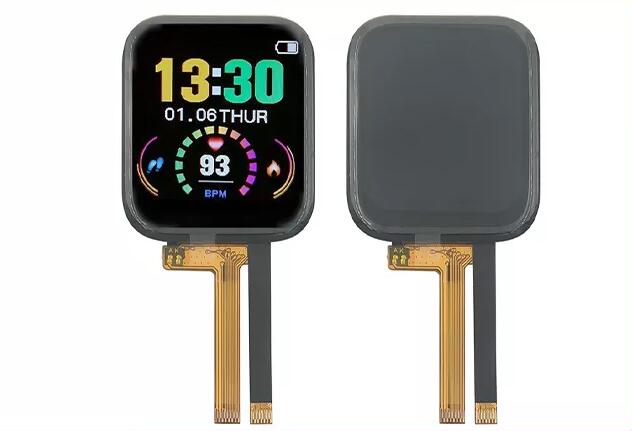

Factory Customize Capacitive Touch 1.7 Inch 240 280 LCD Screen Module

1.7 inch TFT LCD Display Module:

• Product Name	Factory Customize Capacitive Touch 1.7 Inch 240 280 LCD Screen Module
  LCD Size	1.69 Inch TFT LCD Display Module or 1.7 Inch
  Display Mode	IPS
  Resolution	240x280
  Outline Dimension (mm)	35.04x41.24x3.46
  Active Area (mm)	27.97x32.63
  Dot pitch (mm)	0.0975x0.0975
  Viewing Direction	All
  Interface	SPI Interface, 15 Pin
  Driver IC	JD9851A (Optional with ST7789V driver ic)
  Brightness (Cd/m2)	350
  Contrast Ratio	600:1
  Backlight	3 White LED
  Backlight Supply (Current/Voltage)	60mA 3.2V
  Touch Screen	With Capacitive Touch Panel

  * KWH01 is a Transmissive type color active matrix liquid crystal display (LCD).

  * It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

  * It is 240x280 resolution TFT LCD module.

  * Backlight with different brightness options from 250 - 1500cd/m2 are available.

  * Specific touch panel can be designed & customized.

  * RoHS & REACH compliant.

  * If you can't find a suitable one, contact us to get a recommendation.

Our LCD Display Modules couuld applicate many devices.

1.Q: Order process
A:PO is placed by client → PI is issued by Formike → Payment by client → Lead time is
confirmed by Formike → Shipping Doc. is provided by Formike → Shipping instrction by Client → Delivery → Cargo tracking → Receipt of cargo

2.Q: Lead time ( after payment is confirmed)
A: Sample: 1-10 working days
Volume: 3-60 working days

3.Q: Payment
A: T/T , Western union, L/C, Credit card, and Cash

4.Q: Warranty
A: 12 months warranty since Delivery Day

5.Q:RMA Process
A:Claime issued by client with photos or videos → QA of Formike confirm the claim → RMA No. provided by Formike → Analysis report provided by Formike in 5~10 working days after defective is received → The two parties will discuss the report, if necessary → Proceed as per the final report.

6.Q:Notes
A:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
