STN Glass 12864 20 Pin For Industial Controller Monochrome LCD
Display Module
Details
| Name | STN Glass 12864 20 Pin For Industial Controller Monochrome LCD
Display Module |
Resolution | 128x64 graphic dot matrix |

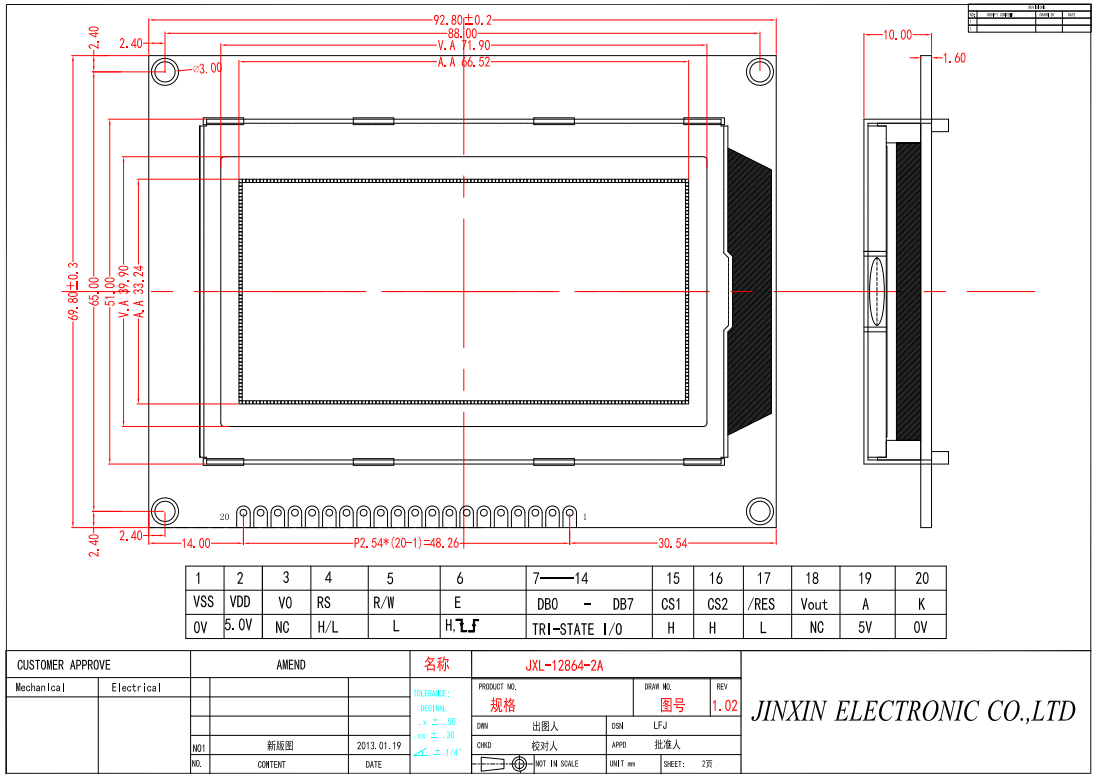

Dimension | 92.8x69.8x10.0 mm |
V.A. | 71.9x39.9 mm |
Driving method | 1/64 Duty; 1/9Bi |
Viewing angle | 6 o'clock |
LCD mode | STN LCD Panel |
Display mode | Transflective ; Positve |
Conecting mode | Metal pin |
STN film | Blue film / Green-yellow film / Grey film |
Voltage driving | Dynamic or static |
DOTS | 128x64 |
Operating voltage | -15℃ - +65℃ |
Storage voltage | -20℃ - +70℃ |
Package | COB |
OEM/ODM | Accecpted |
System design | Lcd module related system software and hardware design accepted |
Warranty | 12 moths free, payed warranty lifttime |
Backlight | LED (Green) |
LCD Module type | Metering Module |
Sample lead time | 3-7 working days |
Customize lead time | 15-30 working days |
Packaging | One module in a bag, bags in small carton foam protecting, small
carton in big carton |
Cetification | ISO,SGS |
Packaging & Delivery
Choose a suitable electrostatic packaging bag according to the size
of the product, and use an airplane box with foam to ensure that
the product is not damaged during transportation.
We usually ship goods By DHL, UPS, EMS, Singpost airmail, and
HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.
If you have not received the goods during the normal time, please
contact us for checking the package status timely online or by
email.
FAQ
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent , we can pack the
goods in your branded boxes after getting your authorization
letters.
Q. How about your delivery time?
A: Generally, goods would be shipped in 3-5 work days after payment
received, finally depends on order quantities.
Q. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q. What is your terms of payment?
A: Full payment. Goods would be shipped in 3-5 work days after
payment received, finally depends on quantities.
Product replacement and warranty
If you have any prodcut quality problem, you can send it back to us
with the original condition,we will repair or exchange new one for
you.
If you have any using problem of the products which buy from
Qihang, please feedback to us first, and we will discuss the issue
with you. Via our technical support, we can dig out your using
problem via our technical support in most of cases.
Lost Products: If products get lost in delivery, or you still do
not get your item for a long time, please contact our customer
service timely. We will deal with this ASAP. Please do not deal
with it all by yourself, we want you communicate with us. Usually,
we will provide tracking number and tracking link timely. If
products get lost on the way and we get confirm from couriers, we
will arrange redelivery for your products. If you want ship it
through express, then you need to pay express shipping fee.
