    1.2 Inch 390*390 MIPI SPI Round 350cd/m2 Monochrome OLED Display Module

    Ask Lasest Price
    Brand Name : Qihang
    Model Number : JXL-1.2" OEL9M1028-W-E
    Certification : ROHS/CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
    Supply Ability : 100,000 Per Month
    Delivery Time : 20-25 Work Days
    • Product Details
    • Company Profile

    1.2 Inch 390*390 MIPI SPI Round 350cd/m2 Monochrome OLED Display Module

    SPI Round 350cd/m2 Monochrome OLED Display Module


    Quick Details


    Items

    Specification

    Unit

    Diagonal Size

    1.2

    Inch

    Resolution

    390(H) x 390(V)

    Dots

    Active Area

    32.72(W) x 32.72(H)

    mm 2

    Outline Dimension

    33.22 * 34.72 * 0.68

    mm 2

    Pixel Pitch

    0.206 (W) x 0.226 (H)

    mm 2

    Pixel Size

    0.226(W) x 0.246 (H)

    mm 2

    Driver IC

    SSD1327Z

    -

    Display Color

    Colourful

    -

    Gray Scale

    4

    Bit

    Interface

    MIPI / SPI


    IC Package Type

    COG with Flex for ZIF

    -

    Module Connecting Type

    ZIF

    -

    Thickness

    1.45±0.15

    mm

    Weight

    TBD

    g

    Duty

    1/128

    -
    Operating Temperature-30℃-70℃
    Storage Temperature-40℃-80℃


    Display Specifications

    1) Display Mode: Passive Matrix
    2) Display Color: Monochrome (White)
    3) Drive Duty: 1/128 Duty
    4) Wide viewing angel: >160 degree
    5) Brightness: 350cd/m2
    6) Dark Room Contrast: >2000:1

    7) Diagonal Size: 1.2 inch


    Sample Policy


    Welcome to contact us for information regarding our sample policy


    Quality to be ensure


    All the panels are 100% original and brand new, no fake panels exists, so from Shenzhen qihang electronic technology company you can enjoy the real panels directly from original factory;
    Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them;


    Packing & Delivery


    1.We will ship the items after the payment is reached;

    2.We can ship to you by UPS / DHL / TNT / EMS / Fedex. Pls contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver,pls choose other shipping ways;

    3.Goods will be sent out soon, within 1-3 days;

    4.We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service;

    5.Any import fees or charges are the buyer's responsibility


    FAQ


    Q:The LCD screen can be exported directly? what certification could provide ?
    A:Liquid crystal products comply with the RoHS standard, can be directly exported.Products by RoHS, CE, SGS certification.

    Q:The product specification is in Chinese or English?
    A:There are two version of product specifications: Chinese and English.

    Q: What is the minimum order quantity?
    A: The minimum order quantity depends on the product size.

    Q: Are you open to OEM processing?
    A: Yes, we can OEM.


    Q: How long is the warranty and service of the product?
    A: The damage caused by the product during normal use, during the warranty period, our company is free to repair, the warranty period, or the damage caused by improper use is not within the scope of free maintenance. As long as it is our products, we can provide technical support services.

    Q:How to control the quality of products?
    A: The company has a professional quality team, and all products are shipped with 100% inspection.

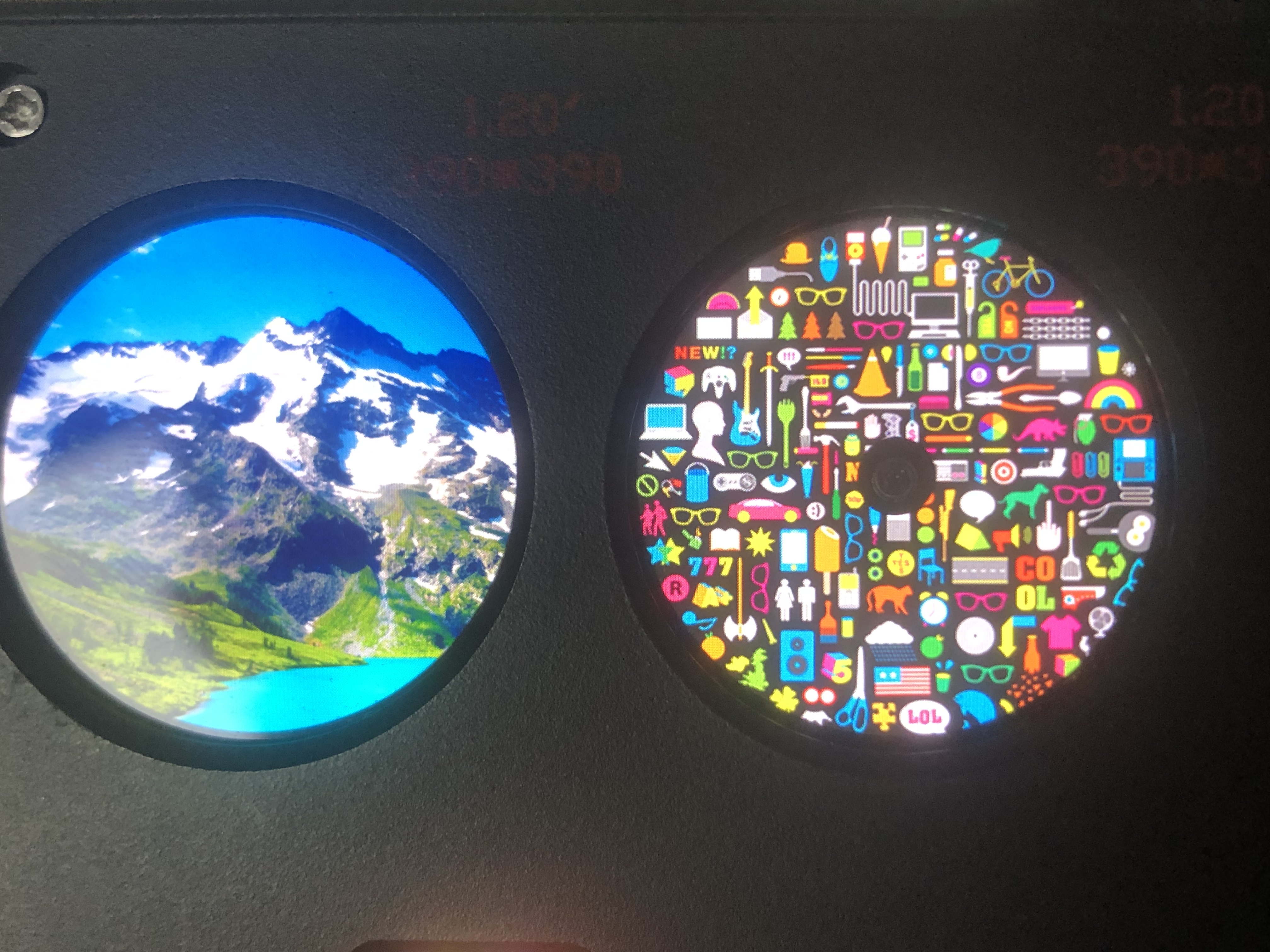

    Product Show
