1.PRODUCTS DESCRIPTION

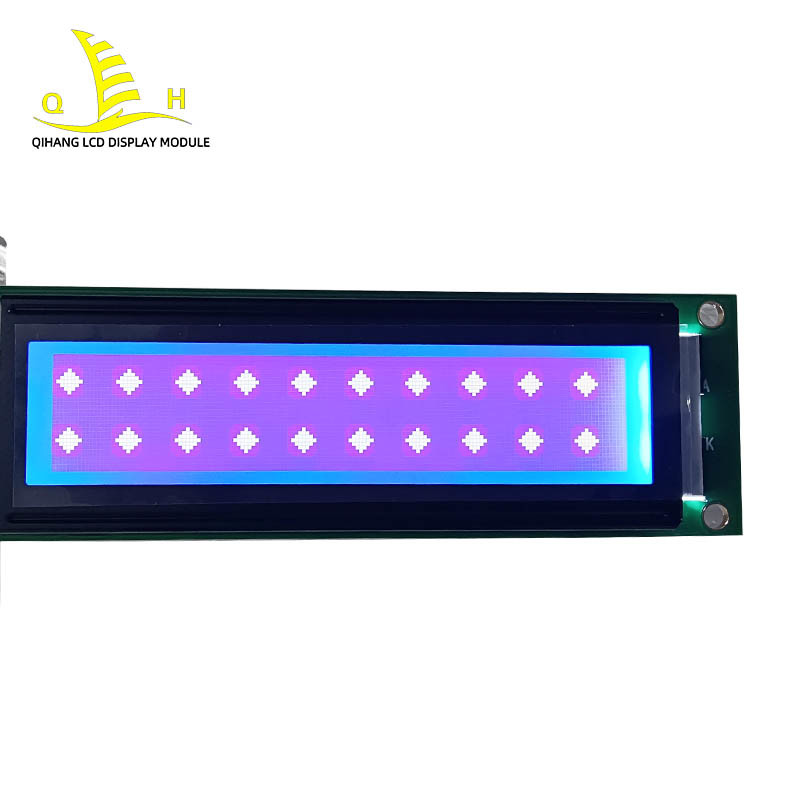

JXL-16032ZK-1 dot matrix graphic liquid crystal display module
(LCM), using 160x32 dot matrix liquid crystal display (LCD)
Composed with low power consumption LED backlight. It is used
together with one ST7920 master IC and one ST7921 as the driver,
each
The screen can display 2 rows of Chinese characters, each row
displays 10 standard Chinese characters, built-in 8192 16x16 dot
Chinese fonts and
126 letter symbols of 16x8 dot half width, and a 64x256 dot drawing
area (GDRAM)
And 240 points of ICON RAM, which can be mixed with text screen,
and ST7920 contains CGRAM. Provides 8
1-bit, 4-bit and serial port three microprocessor interfaces, can
be directly connected with the MCU single-chip microcomputer,
widely used in various instruments
instrumentation and electronic equipment.
2.SPECIFICATIONS
| ITEM | VALUE |
| Modle Number | JXL-160*32ZK-1 |
| Supplier Type | Manufacture |
| Brand Name | QIHang Electronic Technology |
| Dots Number | 160*32 |
| Display Type | STN |
| Module Size(W*H*T) (MM) | 93.00*65.00*12.50 |
| Dot Size(W*H) (MM) | 0.48*0.48 |
| Dot Pitch(W*H) (MM) | 0.44*0.44 |
| Backlight | LED White |
| Viewing Angle | 6 O'clock |
| Viewing Area (MM) | 76.76*15.32 |
| Operating Voltage (V) | 5.0 |
| Operating Temperature (℃) | -25~70℃ |
| Customer Approval | Approve Specification and Sample |
3.APPLICATIONS
We--Shenzhen QiHang Electronic Technology are a professional LCD
Module manufacturer. Our products can be used in Security/
Instrumentation/ Industrialized control/ medical equipment/
Financial industry/ vehicle instrumentation/ consumer electronics/
home appliance industry/ communication products/power industry,
etc.
No matter what type of LCM you need, we have the one most suitable
for you!
4.FAQ
Who Are We?
We are based in Guangdong, China, start from 2012,sell to Domestic
Market(30.00%),North America(10.00%),Southeast Asia(10.00%),Mid
East(10.00%),Eastern Asia(10.00%),South Asia(10.00%),South
America(5.00%),Africa(5.00%),Northern Europe(5.00%),Eastern
Europe(2.00%),Western Europe(2.00%),Southern Europe(1.00%). There
are total about 51-100 people in our office.
How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
What Can You Buy From Us?
Segment LCD Module,Dot Matrix LCD Module, TFT LCD MODULE, OLED
Screen module,Electronic paper ink screen
Why Should You Buy From Us Not From Other Suppliers?
Shenzhen QiHang Electronic Technology Co.,ltd was founded in 2012,
Our company has strong product series such as segment LCD module
and dot matrix LCD module by TN HTN STN FSTN in COB COG, COF
connection. And other TFT LCD Module and OLED LCD Modules.
What Services Can We Provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT,
DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY,
CHF;
Accepted Payment Type: T/T, L/C, D/P D/A, Money Gram, Credit Card,
PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese,
German, Arabic, French, Russian, Korean, Hindi, Italian.
CD module by TN HTN STN FSTN in COB COG, COF connection. And other
TFT LCD Module and OLED LCD Modules.
What Services Can We Provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT,
DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY,
CHF;
Accepted Payment Type: T/T, L/C, D/P D/A, Money Gram, Credit Card,
PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese,
German, Arabic, French, Russian, Korean, Hindi, Italian.
5.PICTURES
