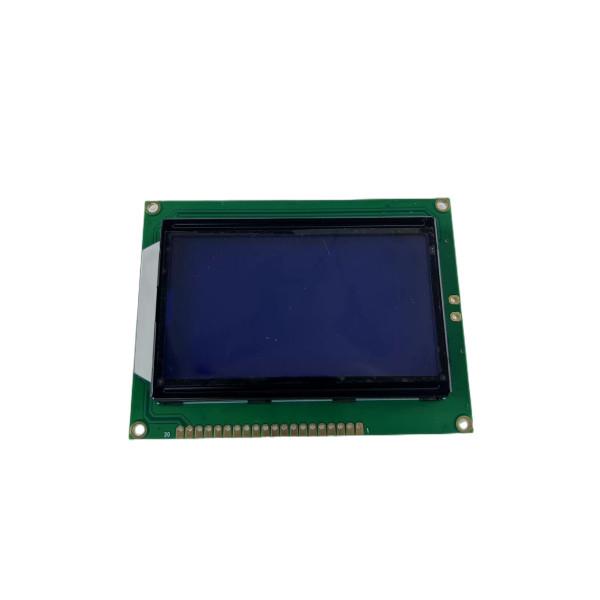

Normally White 12864 Dot LCD Screen Module ST7789 Controller IC

Ask Lasest Price
Brand Name :	Qihang
Model Number :	JXL-32002-A
Certification :	ROHS/CE
Price :	Negotiable
Payment Terms :	T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability :	300000 Per Month
Delivery Time :	10-15 Days

Add to Cart

Product Details
Company Profile

Normally White 12864 Dot LCD Screen Module ST7789 Controller IC

Normally White 12864 Dot LCD Screen Module ST7789 Controller IC

wholesale price of 12864-F04 OEM DOT MATRIX SCREEN

Quick Details

Display Size	wholesale price of 12864-F04 OEM DOT MATRIX SCREEN
Display Mode	Normally White, Transmissive / Positive LCD
Viewing Direction	12 O’CLOCK
Volte	3.3V I/O voltage level tolerance
Backlight	6 Chip White LED Light
Operating Temp:	-20 ℃ - +70 ℃
Storage Temp:	-30 ℃ - +80 ℃
Input Signals	RGB
IC	ST7789 Controller
Outside Dimensions	55.04 * 77.7 * 2.61 mm
Active Area Dimension	48.6 * 64.8 mm
Resolution Dimension	2403RGB320
Pixel Pitch Dimension	0.2025(H)*0.2025(V) mm
Structure Type	COG+FPC+BL (note)

Note

1. LCD Module is with ST7789V Controller
2. Onboard 3.3V regulator require a single 5V supply
3. 3.3V I/O voltage level tolerance
4. Module Size (L * W * H): 55.04*77.7* 2.61 mm (including connector)
5. Support 16 bit RGB565 format , can connect any 16 bit data bus.

3.2" inch TFT LCD module with ST7789V touch screen controller and a SD card cage.

It is suitable for embedded systems which require display high quality

colorful image or video with interactive control and storage purpose.
The Module interfaces to microcontrollers via a 2*20 Pin 2.54mm dual row pin header interface ,

can easily be connected to any microcontroller.

16-bit True Color RGB display.
Support for multiple configuration controls: button controls, controls, text controls, pointer controls.

Sample Policy

We can provide some samples to you for testing.

Shipping Warranty

We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
1. We will ship the items after the payment is reached;
2. Goods will be sent out soon,with 1 - 3 days;
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service;
4. Any import fees or charges are the buyer's responsibility.

5. We can ship to you by UPS / DHL / TNT / EMS / Fedex.

Pls contact us directly and we will use your preferred ways.

Product replacement and warranty

1. If you have any using problem of the products which buy from Qihang, please feedback to us first, and we will discuss the issue with you. Via our technical support, we can dig out your using problem via our technical support in most of cases.

2. If you have any prodcut quality problem, you can send it back to us with the original condition,we will repair or exchange new one for you.

3. Lost Products: If products get lost in delivery, or you still do not get your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we want you communicate with us. Usually, we will provide tracking number and tracking link timely. If products get lost on the way and we get confirm from couriers, we will arrange redelivery for your products. If you want ship it through express, then you need to pay express shipping fee.

4. Support 7Days refund without any CONDITIONS.

FAQ

Is it possible to customize the LCD modules?
Yes you could let us know the concrete requirements then we will design and confirm with you.

Is it possible we appoint the delivery agent?
Yes. Except the couriers we mentioned, we could use others as your requirement.

Products are in stock? How long can you deliver?
Our inventory is mainly semi finished products and raw materials and a small amount of finished goods. Small batch delivery needs 2-3 week, mass delivery takes 3-4 weeks.

How many years for warranty can you provide?
Normally 1 year. Can be longer but price should be modified.

What shall we do if we find any item missing or defective after receiving the goods?
Please contact us ASAP, we will check it and offer the best solution according to the situation.

How long can I get reply?
Within hours. Chinese working time 9:00-18:00 Monday-Friday online service to help you solve problems.Also reply by phone is possible at night time and weekends.

Note

We accept any form cooperations, looking forward to being your reliable long-term parter. If you have any question,you're welcome to contact us. Best wishes for you and your business!
